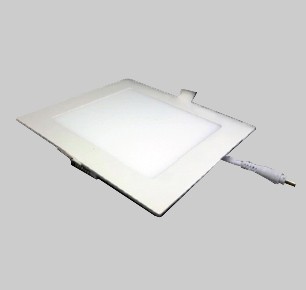

LED RECESSED PANEL LIGHTS

SHAPE POWER LUMINOUS FLUX SIZE (mm) CUTOUT (mm)
Square 3W 315 lm 85 X 85 X 15 70 X 70
Square 6W 630 lm 120 X 120 X 15 105 X 105
Square 9W 940 lm 150 X 150 X 15 135 X 135
Square 12W 1140 lm 150 X 150 X 15 135 X 135
Square 15W 1420 lm 170 X 170 X 15 150 X 150
Square 18W 1710 lm 200 X 200 X 15 175 X 175
Square 22W 2050 lm 225 X 225 X 15 200 X 200
Round 3W 315 lm D85 X 15 D70
Round 6W 630 lm D120 X 15 D105
Round 9W 940 lm D150 X 15 D135
Round 12W 1140 lm D150 X 15 D135
Round 15W 1420 lm D170 X 15 D150
Round 18W 1710 lm D200 X 15 D175
Round 22W 2050 lm D225 X 15 D200
SPECIFICATION:
  • Input : 85V – 265V AC
  • Driver : Isolated, Constant Current
  • PF > 0.92
  • THD : < 15%
  • Others : Dimming option avbl
    • FEATURES:
  • High quality SMD LED light source
  • Available in CW/NW/WW
  • Body color - White
