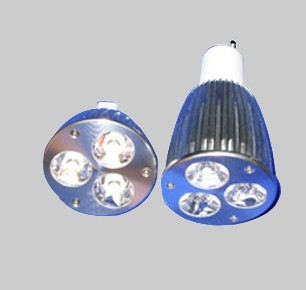

LED MR16 / GU10 LIGHTS

SPECIFICATION:
  • Input : AC 85V – 265V, 12V, 24V
  • Driver Efficiency : > 0.85
  • PF : > 0.85
  • THD : < 15%
    • APPLICATIONS:
  • Offices, malls, showrooms, hospitals
  • Meeting rooms, exhibitions, conference halls, hallway
  • Hotels, restaurant lobby, casinos, museums
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • Excellent substitute for MR16 / GU10 Halogen lamps
  • Elegant and compact
  • All Lights manufactured with SMD design with latest technology
  • Unique sectional thermal material for quick heat dissipation
  • Total isolated built in constant current drivers
  • Aluminium body
  • Consumes 80% to 90% less energy than conventional lights
  • No UV or RF interference
  • No toxic substance like Mercury
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    3W
    Dimension (mm)
    50mm Dia X 56mm Height
    Color Temperature
    3000 - 3500K 6000 - 6500K/td>
    Lumen Output
    120 lm 160 lm
    Power Consumption
    4W
    Dimension (mm)
    50mm Dia X 56mm Height
    Color Temperature
    3000 - 3500K 6000 - 6500K
    Lumen Output
    240 lm 380 lm
    Power Consumption
    6W
    Dimension (mm)
    50mm Dia X 58mm Height
    Color Temperature
    3000 - 3500K 6000 - 6500K
    Lumen Output
    375 lm 460 lm
    Power Consumption
    10W
    Dimension (mm)
    50mm Dia X 80mm Height
    Color Temperature
    3000 - 3500K 6000 - 6500K
    Lumen Output
    415 lm 510 lm
    Beam Angle
    30, 40, 60 Deg
    Installation
    Indoor
    Material
    Aluminum Alloy
    Base
    MR16/GU10
    Colors
    Warm White Pure White
    Working temperature
    -20°C~50°C
    Effective life time
    50,000 hours - 70% lumen maintenance
    Warranty
    2 Years
    NOTES
  • Available in pendant type & wall mounted type
  • Other wattage and sizes available on request
  • The design and specification is subject to change without prior notice.
  • Fitting should be carried out by qualified electricians as per the instruction manual

    • Warning: Improper installation of LED Bay lights may result in failure of the product. Please follow the instructions carefully.
