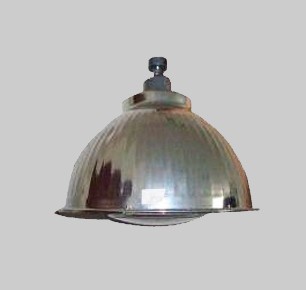

LED BAY LIGHTS

SPECIFICATION:
  • Input : 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Warehouse, cold stores, factories, workshops, supermarkets
  • Stadiums, public places
  • Gardens, parks
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • No ballasts or chokes required
  • Excellent substitute for HPSV / Mercury Vapor lamps
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers
  • Aluminium body with Aluminium coated PC reflector
  • Consumes 60% to 80% less energy than conventional HPSV / Mercury Vapor lamps
  • No UV or RF interference
  • No toxic substance like Mercury
    • TECHNICAL DATA:
    Size (mm) Dia X height
    Power(Watts) Luminous Flux Color Temp
    300 X 280
    36W 2150 lm 5000 - 6000K
    300 X 280
    36W 2050 lm 2700 - 3300 K
    400 X 380
    65W 4300 lm 5000 - 6000K
    400 X 380
    65W 4100 lm 2700 - 3300 K
    400 X 410
    102W 7100 lm 5000 - 6000K
    400 X 410
    102W 6850 lm 2700 - 3300 K
    300 X 320
    36W 2150 lm 5000 - 6000K
    300 X 320
    36W 2050 lm 2700 - 3300 K
    400 X 410
    65W 4300 lm 5000 - 6000K
    400 X 410
    65W 4100 lm 2700 - 3300 K
    400 X 470
    102W 7100 lm 5000 - 6000K
    400 X 470
    102W 6850 lm 2700 - 3300 K
    Beam Angle
    80 Deg
    CRI
    85Ra
    Colors available
    Warm White & Pure White
    Material
    Aluminum + Polycarbonate
    Expected Life
    50000 hours
    Warranty
    2 Years
    NOTES
  • Available in pendant type & wall mounted type
  • Other wattage and sizes available on request
  • The design and specification is subject to change without prior notice.
  • Fitting should be carried out by qualified electricians as per the instruction manual

    • Warning: Improper installation of LED Bay lights may result in failure of the product. Please follow the instructions carefully.
