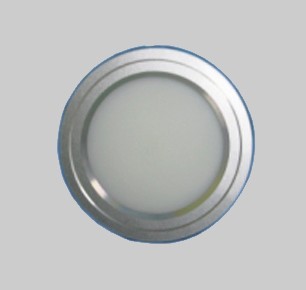

LED DOWN LIGHTS – E Series

SPECIFICATION:
  • Input : 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Offices, Malls, Showrooms, Boutiques, Hotels, Hospitals
  • Meeting Rooms, Exhibitions, Conference Halls, Museums
  • Residences
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • Unique edge lit technology for uniform light transmission
  • No ballasts or chokes required
  • Excellent substitute for CFL Down Lights
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers (Separate)
  • Aluminium body with PC cover
  • Consumes 60% to 70% less energy than conventional lights
  • No UV or RF interference
  • No toxic substance like Mercury
  • Different trim colors available
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    6W
    Dimension (mm)
    142 Dia X 17 Height
    Cut out Dia (mm)
    136 mm
    Color Temperature
    5300 - 7000K 4000 - 5000K 2700 - 3300K
    Lumen Output
    360 300 250
    Lux @ 1 metre
    62 42 30
    Power Consumption
    10W
    Dimension (mm)
    180 Dia X 17 Height
    Cut out Dia (mm)
    170
    Color Temperature
    5300 - 7000K 4000 - 5000K 2700 - 3300K
    Lumen Output
    550 490 410
    Lux @ 1 metre
    165 140 100
    Power Consumption
    10W
    Dimension (mm)
    199 Dia X 17 mm
    Cut out Dia (mm)
    190
    Color Temperature
    5300 - 7000K 4000 - 5000K 2700 - 3300K
    Lumen Output
    570 500 420
    Lux @ 1 metre
    175 150 120
    Power Consumption
    15W
    Dimension (mm)
    260 Dia X 17 Height
    Cut out Dia (mm)
    245
    Color Temperature
    5300 - 7000K 4000 - 5000K 2700 - 3300K
    Lumen Output
    900 800 700
    Lux @ 1 metre
    210 200 160
    Beam Angle
    110 - 120 Deg
    Color Rendering Index
    > 85a
    Installation
    Indoor
    Material
    Aluminum Alloy + PC Cover
    Colors
    Cool White Pure White Warm White
    Working temperature
    Less than 60 DegC
    Effective life time
    50,000 hours - 70% lumen maintenance
    Warranty
    2 Years
