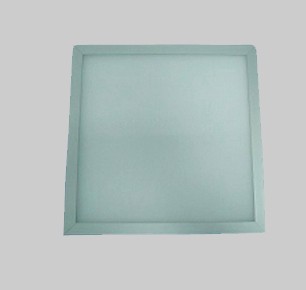

LED PANEL LIGHTS

SPECIFICATION:
  • Input 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Offices, Malls, Hospitals, Showrooms, Hotels
  • Meeting Rooms, Exhibitions, Conference Halls
  • Residences
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • No ballasts or chokes required.
  • Excellent substitute for PLC Lamps with G24 Base
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers
  • Available in Clear and diffused housing made of High quality PC Material
  • Consumes 60% to 70% less energy than conventional Fluorescent Tubes
  • No UV or RF interference
  • No toxic substance like Mercury
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    2W
    Size (mm)
    100 X 100 X 17
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    100 80 60
    Lux @ 1 metre
    50 40 35
    Power Consumption
    9W
    Size (mm)
    185 X 185 X 17
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    400 350 280
    Lux @ 1 metre
    120 115 75
    Power Consumption
    10W
    Size (mm)
    200 X 200 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    400 350 280
    Lux @ 1 metre
    120 115 75
    Power Consumption
    18W
    Size (mm)
    300 X 300 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    900 835 700
    Lux @ 1 metre
    280 270 210
    Power Consumption
    22W
    Size (mm)
    300 X 600 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    1100 1000 950
    Lux @ 1 metre
    350 310 230
    Power Consumption
    38W
    Size (mm)
    600 X 600 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    2000 1900 1800
    Lux @ 1 metre
    600 550 400
    Power Consumption
    38W
    Size (mm)
    1200 X 300 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    2300 2100 2000
    Lux @ 1 metre
    500 450 420
    Power Consumption
    74W
    Size (mm)
    1200 X 600 X 13
    Color Temperature
    5300 - 7000 K 4000 - 5000 K 2750 - 3500 K
    Lumen Output
    3900 3300 2900
    Lux @ 1 metre
    1050 980 920
    Beam Angle
    120
    Color Rendering Index
    > 85a
    Installation
    Indoor
    Material
    Aluminum Alloy + PC Cover
    Working temperature
    Less than 60 DegC
    Effective life time
    50,000 hours - 70% lumen maintenance
    NOTES
  • Please contact us for other sizes and wattages
  • Available in built-in, suspended and mounted design
  • The design and specification is subject to change without further notice.
