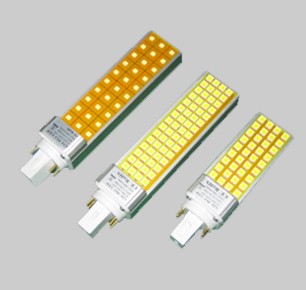

LED PL LIGHTS – A Series

(G24 Base)
SPECIFICATION:
  • Input : 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Offices, Malls, Showrooms, Boutiques
  • Railway Stations, Buses, Trains, Metros
  • Meeting Rooms, Exhibitions, Conference Halls
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • No ballasts or chokes required.
  • Excellent substitute for PLC Lamps with G24 Base
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers
  • Available in Clear and diffused housing made of High quality PC Material
  • Consumes 60% to 70% less energy than conventional Fluorescent Tubes
  • No UV or RF interference
  • No toxic substance like Mercury
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    7W
    Color Temperature
    6000 – 6500K 3000 – 3500K
    Lumen Output
    560 lm 480 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    421 215 102 387 193 96
    Power Consumption
    11W
    Color Temperature
    6000 – 6500K 3000 – 3500K
    Lumen Output
    880 lm 760 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    617 325 159 589 303 142
    Power Consumption
    13W
    Color Temperature
    6000 – 6500K 3000 – 3500K
    Lumen Output
    1020 lm 900 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    816 401 188 784 377 169
    Socket type
    G24 –q1, q2, q3, d1, d2.d3. other base on request
    Beam Angle
    120
    Color Rendering Index
    > 85a
    Installation
    Indoor
    Material
    Aluminum Alloy
    Working temperature
    Less than 50 DegC
    Dimensions
    7W 11w 13W
    L X W X H (mm)
    118 X 35 X 35 160 X 35 X 35 160 X 35 X 35
    Effective life time
    50,000 hours – 70% lumen maintenance
    Colors available
    Pure White & Warm White
    Warranty
    2 Years
    INSTALLATION PROCEDURE
  • In case you are replacing the existing PL Light, please follow the instructions given in the manual
  • In case of new installation, the LED PL Light can be mounted directly on the holder without ballast or starter.

    • WARNING: Improper installation of LED PL Lights may result in failure of the product. Please follow the instructions carefully.
