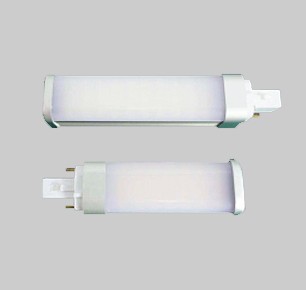

LED PL LIGHTS – F Series

(G24 Base with Frosted cover)
SPECIFICATION:
  • Input : 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Offices, Malls, Showrooms, Boutiques
  • Railway Stations, Buses, Trains, Metros
  • Meeting Rooms, Exhibitions, Conference Halls
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • No ballasts or chokes required.
  • Excellent substitute for PLC Lamps with G24 Base
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers
  • Available in Clear and diffused housing made of High quality PC Material
  • Consumes 60% to 70% less energy than conventional Fluorescent Tubes
  • No UV or RF interference
  • No toxic substance like Mercury
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    7W
    Color Temperature
    6000 - 6500K 3000 - 3500K
    Lumen Output
    495 lm 306 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    165 52 28 144 48 24
    Power Consumption
    9W
    Color Temperature
    6000 - 6500K 3000 - 3500K
    Lumen Output
    632 lm 509 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    186 78 36 157 62 28
    Power Consumption
    11W
    Color Temperature
    6000 - 6500K 3000 - 3500K
    Lumen Output
    784 lm 627 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    227 91 43 209 76 37
    Socket type
    G24 -q1, q2, q3, d1, d2.d3. other base on request
    Power Consumption
    13W
    Color Temperature
    6000 - 6500K 3000 - 3500K
    Lumen Output
    912 lm 763 lm
    Distance
    1m 2m 3m 1m 2m 3m
    Illumination ( Lux)
    257 103 49 233 87 41
    Beam Angle
    120
    Color Rendering Index
    > 85a
    Installation
    Indoor
    Material
    Aluminum Alloy
    Working temperature
    Less than 50 DegC
    Dimensions
    7W 9W 11W 13W
    L X W X H (mm)
    126X35X35 160X35X35 180X35X35 180X35X35
    Effective life time
    50,000 hours - 70% lumen maintenance
    INSTALLATION PROCEDURE
  • In case you are replacing the existing PL Tube, please follow the instructions given in the manual
  • In case of new installation, the LED PL Tube can be mounted directly on the holder without ballast or starter.

    • WARNING: Improper installation of LED PL Lights may result in failure of the product. Please follow the instructions carefully.
