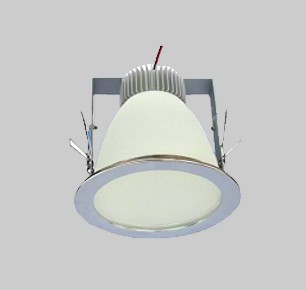

LED DOWN LIGHTS – M Series

SPECIFICATION:
  • Input : 65V – 265V AC, 50Hz – 60 Hz
  • Driver Efficiency : > 0.85
  • PF : > 0.9
  • THD : < 15%
    • APPLICATIONS:
  • Offices, Malls, Showrooms, Boutiques, Hotels, Hospitals
  • Meeting Rooms, Exhibitions, Conference Halls, Museums
  • Residences
    • FEATURES:
  • Can be used for retrofits as well as new projects
  • Unique edge lit technology for uniform light transmission
  • No ballasts or chokes required
  • Excellent substitute for CFL Down Lights
  • Elegant and Sleek
  • All Lights manufactured with SMD design with latest technology
  • Unique Heat sink design with high surface area for quick heat dissipiation
  • Total isolated constant current drivers (Separate)
  • Aluminium body with PC Diffuser
  • Consumes 60% to 70% less energy than conventional lights
  • No UV or RF interference
  • No toxic substance like Mercury
    • PHOTOMETRIC CHARACTERISTICS:
    Power Consumption
    5W
    Dimension (mm)
    113 Dia X 114 Height
    Cut out Dia (mm)
    96
    Color Temperature
    6000 - 7000K 2700 - 3500K
    Lumen Output
    226 lm 173 lm
    Power Consumption
    10W
    Dimension (mm)
    150 Dia X 137 Height
    Cut out (mm)
    128
    Color Temperature
    6000 - 7000K 2700 - 3500K
    Lumen Output
    406 lm 365 lm
    Power Consumption
    15W
    Dimension (mm)
    173 Dia X 165 Height
    Cut out Dia (mm)
    156
    Color Temperature
    6000 - 7000K 2700 - 3500K
    Lumen Output
    593 lm 563 lm
    Beam Angle
    80 - 100 Deg
    Color Rendering Index
    > 85a
    Installation
    Indoor
    Material
    Aluminum Alloy + PC Diffuser
    Colors
    Pure White Warm White
    Working temperature
    Less than 60 DegC
    Effective life time
    50,000 hours - 70% lumen maintenance
    Warranty
    2 Years
    NOTES
  • In case you are replacing a CFL Down Light, please ensure ballast is removed before installing the LED Down Light.
  • Other wattage and sizes available on request.
  • The design and specification is subject to change without prior notice.
